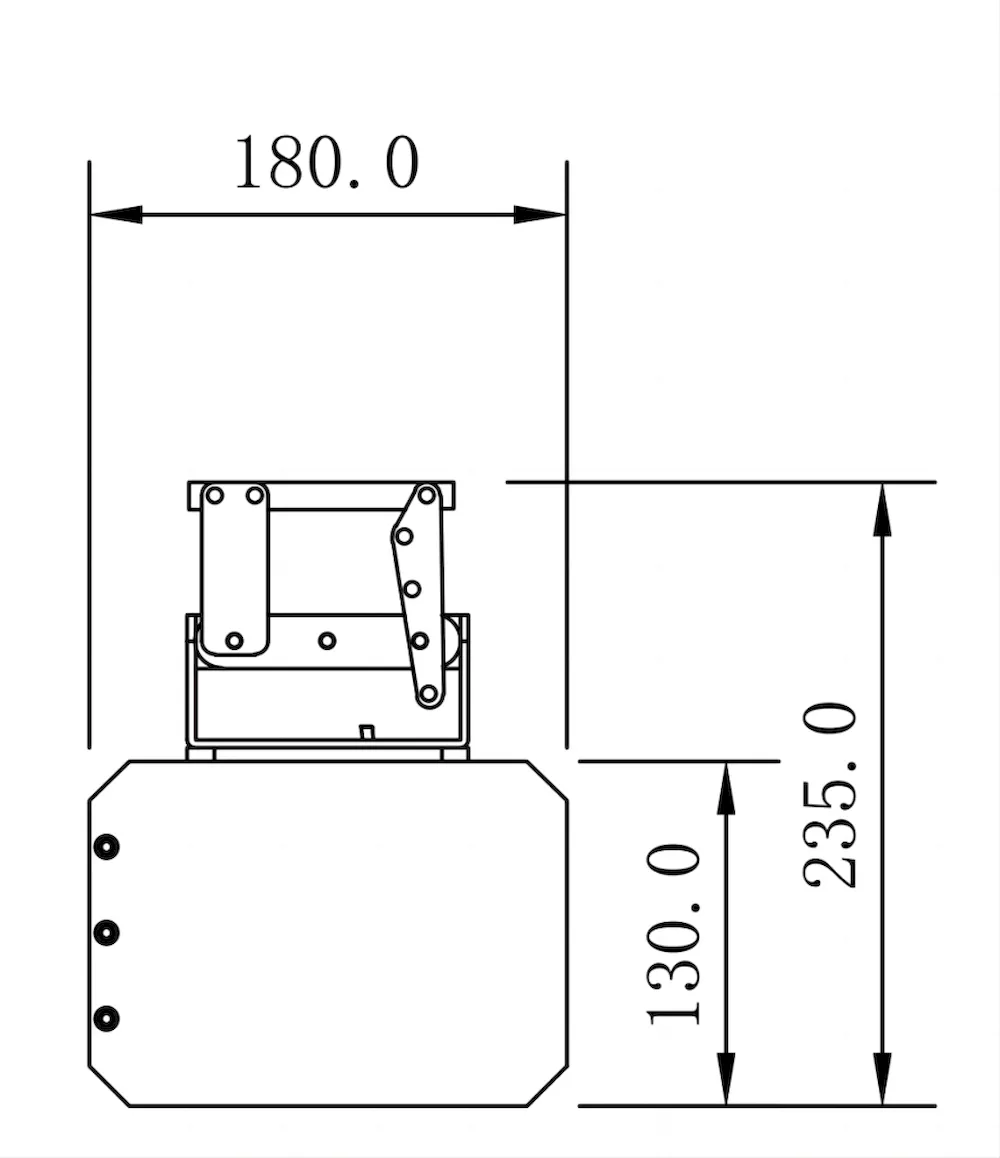

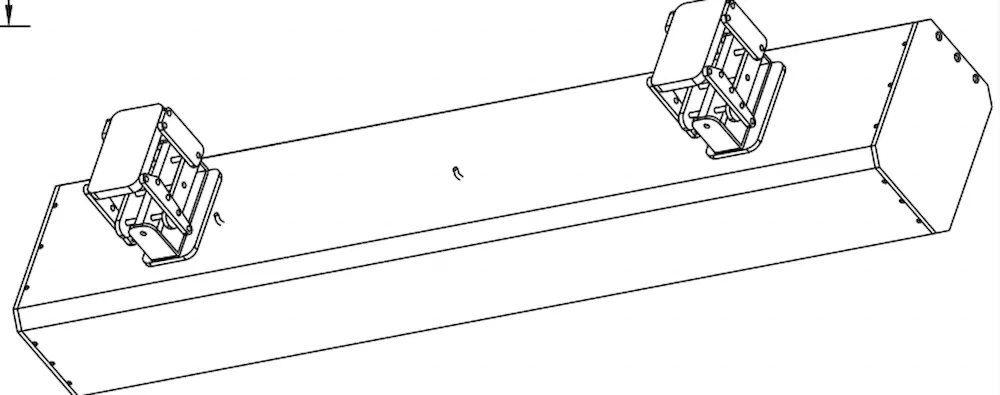

A precision laser positioning device for tire forming and other web/roll forming processes. It provides a clear red laser line for alignment, marking and position control, helping operators keep forming position error within 0.2 mm under the specified working distance.
| Item | Parameter |
| Supply voltage | DC24V / 3A |
| Laser wavelength | 635 nm red |
| Output power | 2 mW / 1 mW |
| Laser line length | >= 2.2 m at 1.8 m distance |
| Laser line width | <= 0.5 mm at 1.8 m distance |
| Line curvature | <= 0.2 mm at 1.8 m distance |
| Marking repeatability | <= 0.2 mm at 1.8 m distance |
| Drive speed | 100 mm/sec |
| Communication | MODBUS TCP, RS485 |
| Operating temperature | 0-50 C, non-condensing |
| Protection grade | IP54 |
