S1000 Pro Centering Web Guide System with Width Measurement

An integrated centering web guide system that combines lateral web correction and real-time width measurement. It is designed for production lines that need the material to stay centered while width changes are monitored continuously.

Key Selling Points

Combines web centering and width measurement in one system.
Dual-edge sensing calculates the real-time distance between the left and right material edges.
32-bit dual-core control architecture with fast response.
Closed-loop servo motor control for accurate correction.
Compatible with ultrasonic sensors and CCD line-tracking sensors.

Typical Applications

Printing, packaging, textile and steel-related web lines
Production lines requiring centering correction and width monitoring
Lines where reduced material waste and faster setup are important

Technical Parameters

Item	Parameter
CPU	32-bit dual-core, FPGA + ARM
Operating frequency	210 MHz
Motor	Closed-loop servo motor
Response time	0.02 ms
Encoder	1000-line imported encoder
Accuracy	0.004 mm
Motor speed control	Adjustable motor speed with automatic speed change
Sensor interface	Ultrasonic sensor, CCD line-tracking sensor
Interference resistance	Metal shell with strong interference resistance
Commutation	Electronic commutation
Anti-static	30,000 V
Safety	Sparkless commutation

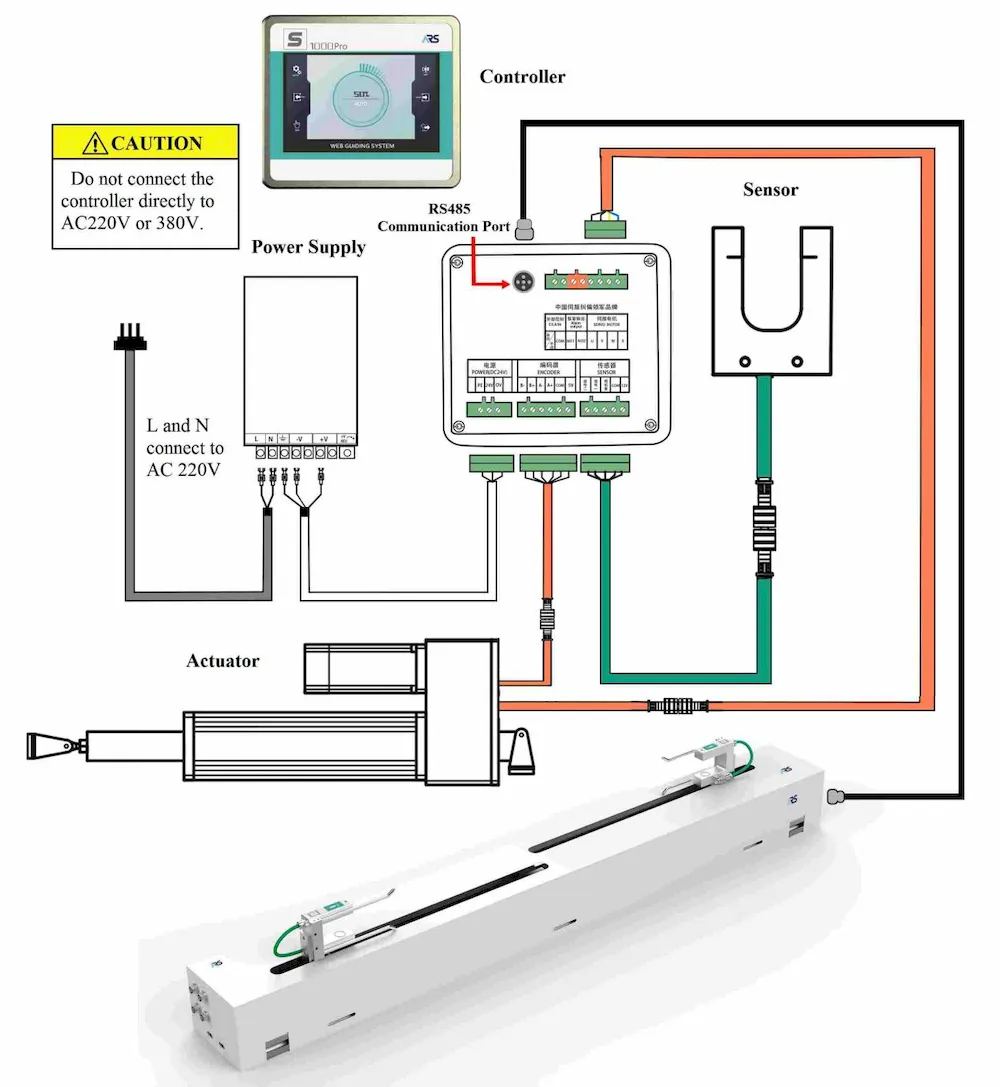

Power and I/O

Item	Parameter
Operating power input	DC24V, at least 4A; 150W recommended
Sensor power output	DC12V for sensors, maximum 1A
Motor output	PWA pulse control output for servo motor control
